Waste skips
DNV 2.7-1 certified for safe offshore waste handling

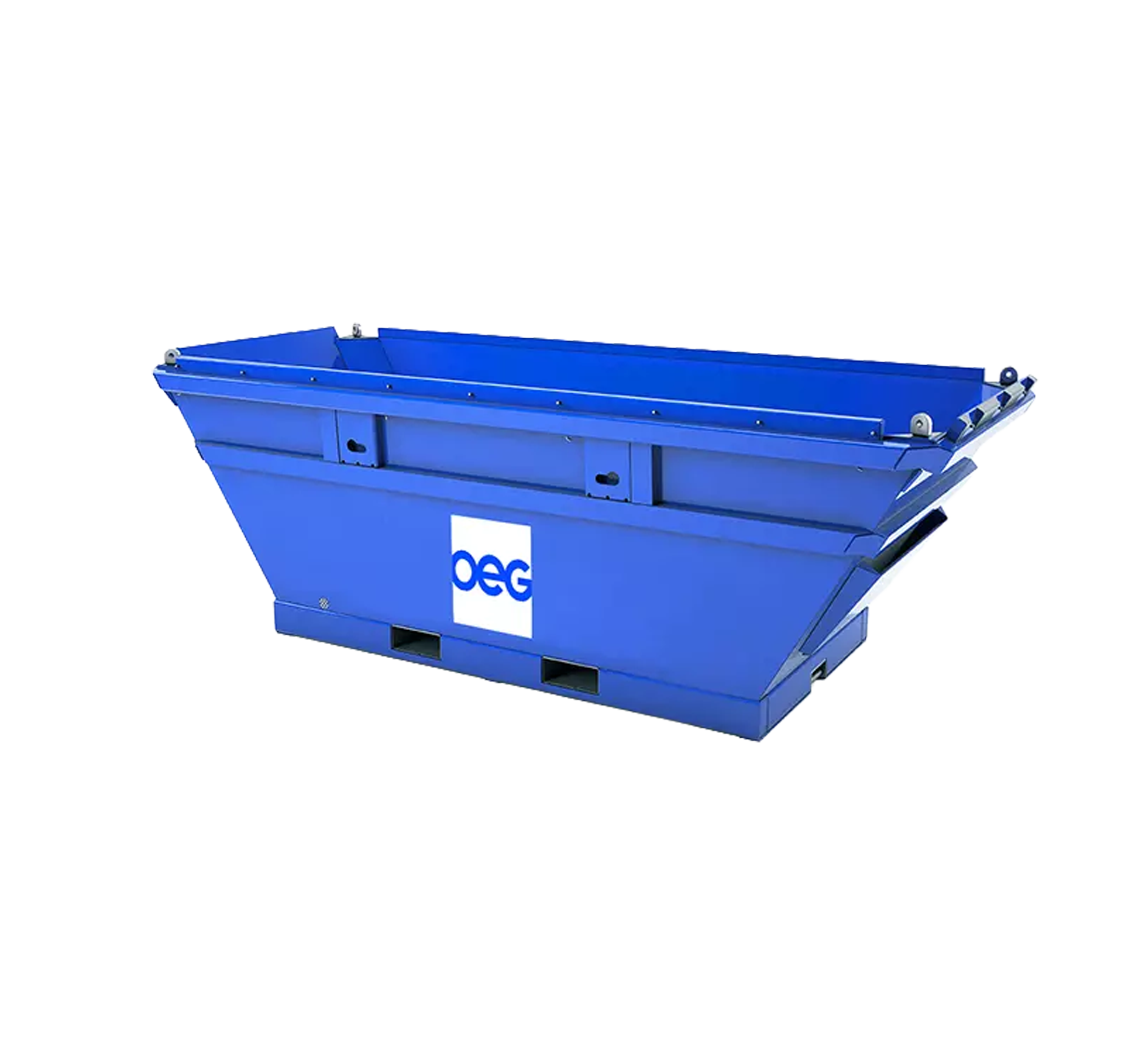

OEG waste skips provide safe containment and transport of drilling waste, cuttings and general refuse from offshore installations. Certified to DNV 2.7-1/EN 12079, these robust units feature liquid-tight construction and secure lids to prevent spillage during lifting and transport. Available in configurations from 6 m³ general waste skips to 10 tonne mud cutting skips.
Certificates
- DNV 2.7-1
- BSEN 12079
- ISO 10855
- DNV 2.7-1/EN 12079 certification - Approved for offshore crane operations and platform acceptance. Documentation ready for regulatory compliance and waste transport chain custody.
- Liquid-tight construction - Prevents leakage of contaminated fluids during transport and storage. Sealed welds and gasket lids contain drill mud and hydrocarbon-contaminated materials safely.
- Hinged lockable lids - Secure closure during crane lifts prevents spillage and dropped objects. Lids open under load weight when skip is tilted for discharge, eliminating need to climb on units.
- Stackable design - Reduces deck footprint during waste backload campaigns. Two-tier stacking certified for loaded skips, maximizing vessel deck utilization.
| Type | Name | External dimensions (LxWxH) (mm) | Tare weight (kg) | Max payload (kg) | Max gross weight (kg) |
|---|---|---|---|---|---|
Type SBC | Name 5 cbm Compactor | External dimensions | Tare weight (kg) 2,650 | Max payload (kg) 2,770 | Max gross weight (kg) 5,420 |
Type LBC | Name 6,5 cbm Compactor | External dimensions | Tare weight (kg) 2,800 | Max payload (kg) 4,500 | Max gross weight (kg) 7,300 |
Type BC | Name 8 cbm Compactor | External dimensions | Tare weight (kg) 2,800 | Max payload (kg) 4,500 | Max gross weight (kg) 7,300 |
Type B | Name 8 cbm Waste Skip | External dimensions | Tare weight (kg) 1,750 | Max payload (kg) 5,750 | Max gross weight (kg) 7,500 |
Type W | Name 6,5 cbm Waste Skip | External dimensions | Tare weight (kg) 1,500 | Max payload (kg) 4,500 | Max gross weight (kg) 6,000 |
Type XW | Name 5 cbm Waste Skip | External dimensions | Tare weight (kg) 1,360 | Max payload (kg) 3,700 | Max gross weight (kg) 5,060 |
Type SW | Name 3 cbm Waste Skip | External dimensions | Tare weight (kg) 1,250 | Max payload (kg) 6,250 | Max gross weight (kg) 7,500 |
Type CMS | Name 5cbm Closed Mud Skip | External dimensions | Tare weight (kg) 1,700 | Max payload (kg) 9,300 | Max gross weight (kg) 11,000 |
Type KS | Name Waste Bin Carrier | External dimensions | Tare weight (kg) 950 | Max payload (kg) 1,850 | Max gross weight (kg) 2,800 |
Note: Dimensions and weight may vary due to continuous product development.
