Lifting frames
DNV 2.7-3 certified for safe offshore cargo handling

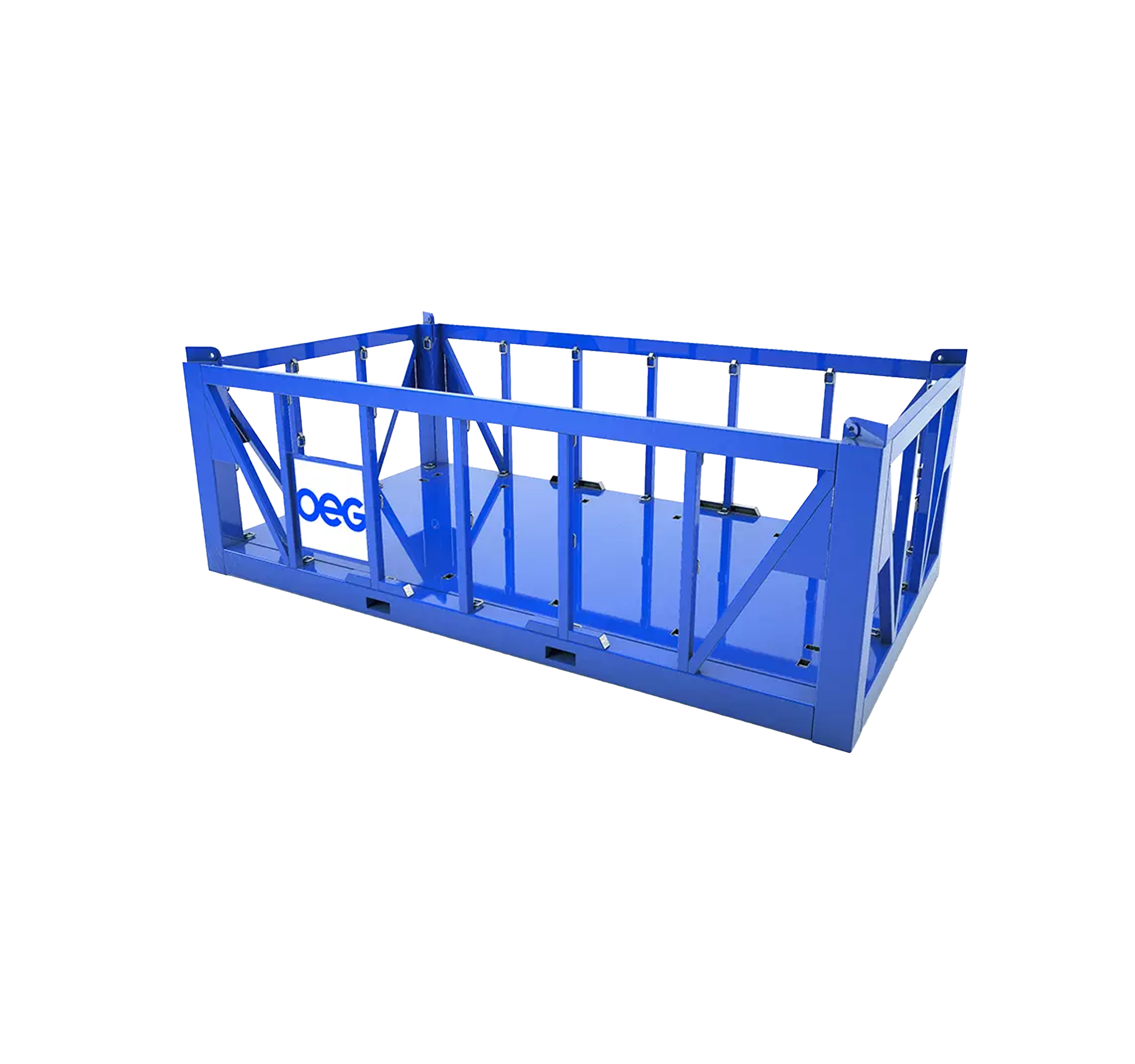

OEG lifting frames provide certified platforms for securing and lifting irregular cargo during offshore crane operations. Certified to DNV 2.7-3, these open-frame units accommodate equipment and materials that cannot be containerised. Payloads from 10.9 to 32.3 tonnes.
Certificates
- DNV 2.7-3
- DNV 2.7-3 certification - Certified for portable offshore units, with payloads from 10.9 to 32.3 tonnes. Enables transport of ISO containers and onshore equipment to offshore installations.
- Multiple lashing rings - Up to 42 lashing points on larger frames secure cargo from multiple angles. Adjustable securing arrangements accommodate varying load shapes and weights.
- Open-frame construction - The frames are loaded from above. Open construction gives personnel good access for securing and inspecting the cargo before lifting.
- High-strength corrosion-resistant steel - Engineered for challenging offshore environments and repeated heavy lifts. Protective coatings extend service life in salt spray conditions.
| Type | Name | External dimensions (LxWxH) (mm) | Tare weight (kg) | Max payload (kg) | Max gross weight (kg) |
|---|---|---|---|---|---|
Type LF- | Name 4,3 x 1,3m Lifting Frame | External dimensions | Tare weight (kg) 1,100 | Max payload (kg) 10,900 | Max gross weight (kg) 12,000 |
Type LF- | Name 3,5 x 4,5m Heavy Lift Frame | External dimensions | Tare weight (kg) 5,070 | Max payload (kg) 32,230 | Max gross weight (kg) 37,300 |
Type LF- | Name 7 x 4m Heavy Lift Frame | External dimensions | Tare weight (kg) 7,200 | Max payload (kg) 30,100 | Max gross weight (kg) 37,300 |
Type LF- | Name 6 x 4,5 x 3m Heavy Lift Frame | External dimensions | Tare weight (kg) 7,450 | Max payload (kg) 30,000 | Max gross weight (kg) 37,450 |
Type LF- | Name 8 x 5 x 3m Heavy Lift Frame | External dimensions | Tare weight (kg) 9,800 | Max payload (kg) 30,000 | Max gross weight (kg) 39,800 |
Note: Dimensions and weight may vary due to continuous product development.
