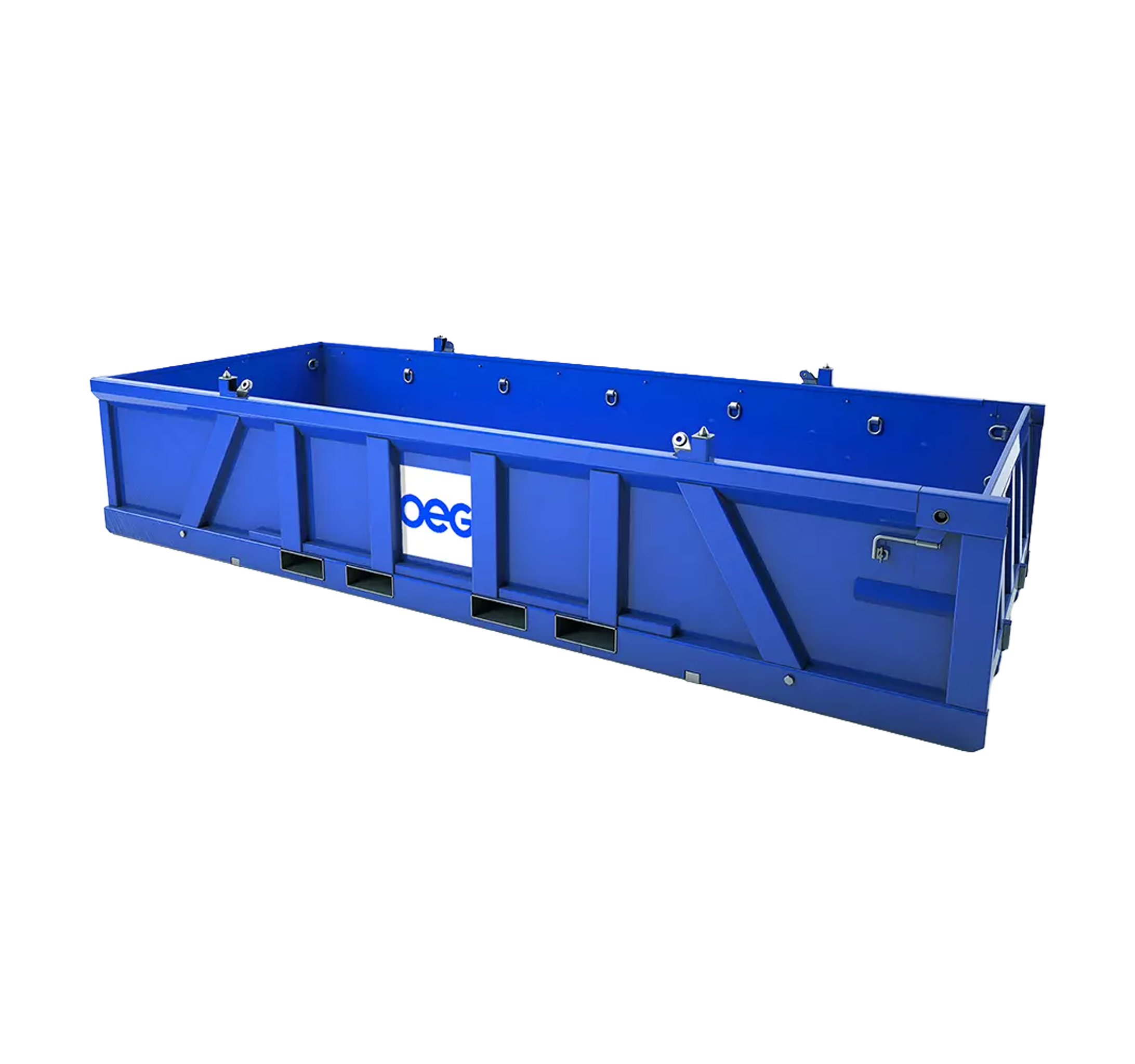

Half height containers
DNV 2.7-1 and 2.7-3 certified low-profile units for easy access offshore
OEG half height containers enable reduced-height cargo handling with improved access for loading and unloading. Certified to DNV 2.7-1 or DNV 2.7-3 and ISO 10855-1, these low-profile CCUs allow safer personnel access and easier forklift operations. Available in lengths of 2, 3, 6, 7 and 10 metres.
Certificates
- DNV 2.7-1
- DNV 2.7-3
- ISO 10855-1
- DNV 2.7-1/2.7-3 and ISO 10855-1 - Units are certified to DNV 2.7-1 or DNV 2.7-3, depending on type. Meets international standards for dynamic lifting in harsh marine environments.
- Reduced height profile - Half the height of standard containers improves loading accessibility and personnel safety. Lower centre of gravity enhances stability during crane lifts and transport.
- Loading ramp and removable sides - LB-2, LB-3 and LB-6 have a fold-down loading ramp on one short side for forklift access. LB-7 and LB-10 have removable sides.
- Stackable where permitted - Can be stacked where permitted. The LB types have no ISO corners and cannot be secured with twist locks. Some other types have ISO corners.
| Type | Name | External dimensions (LxWxH) (mm) | Tare weight (kg) | Max payload (kg) | Max gross weight (kg) |
|---|---|---|---|---|---|
Type LB-2 | Name 2m Half Height Basket | External dimensions | Tare weight (kg) 960 | Max payload (kg) 3,370 | Max gross weight (kg) 4,330 |
Type LB-3 | Name 3m Half Height Basket | External dimensions | Tare weight (kg) 2,060 | Max payload (kg) 11,940 | Max gross weight (kg) 14,000 |
Type LB-6 | Name 6m Half Height Basket | External dimensions | Tare weight (kg) 3,145 | Max payload (kg) 10,855 | Max gross weight (kg) 14,000 |
Type LB-7 | Name 7m Heavy Lift Basket | External dimensions | Tare weight (kg) 5,920 | Max payload (kg) 19,080 | Max gross weight (kg) 25,000 |
Type LB-10 | Name 10m Heavy Lift Basket | External dimensions | Tare weight (kg) 8,100 | Max payload (kg) 16,400 | Max gross weight (kg) 24,500 |
Note: Dimensions and weight may vary due to continuous product development.
